Multifunctional integrated wood pellet plant

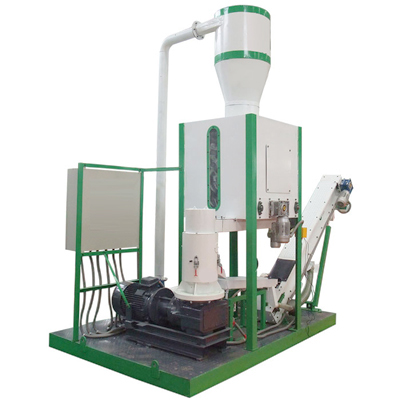

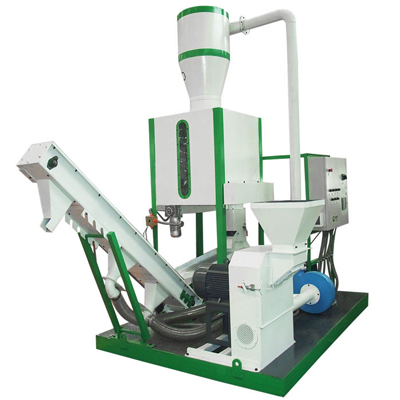

complete pellet plant
integrated pellet plant

Multifunctional integrated wood pellet plant combines our rich experience and advanced technology in biomass equipment. It integrates the functions of crushing, mixing, pelletizing and cooling, meeting customers’ multiple demands for making biomass pellets. With concise and elegant appearance, it sells well among end users and pellet dealers.

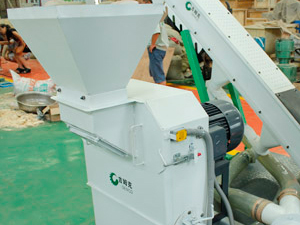

hammer mill
Hammer mill

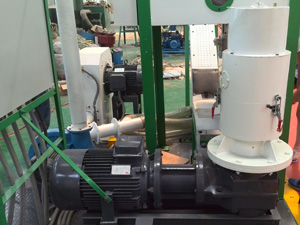

pellet machine parts
Pellet machine

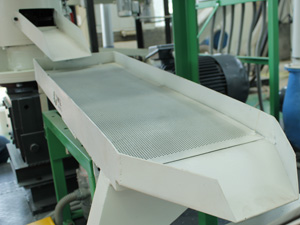

viberating sieve
Vibrating sieve

Specifications of integrated wood pellet plant

Model Capacity (kg/h) Pellet Diameter (mm) Power (kw) Size (mm)
MPL300 250-350 6-12 41.25 3500*1960*3500
MPL400 350-450 6-12 49.25 3500*1960*3500
send inquiry

Process flow of Integrated wood pellet plant

Integrated wood pellet plant is composed of a pellet machine, a hammer mill with cyclone, a draught fan, a mixing feeder, a vibrating sieve, and a cooling conveyor. Meanwhile, it is equipped with a variable frequency regulator to take overall control of the process flow to ensure it is perfect and reasonable.

  1. The hammer mill crush raw materials into suitable size.
  2. After crushing, the draught fan transmmit the raw materials to the mixing feeder.
  3. After mixing, the raw materials are fed to the pellet machine.
  4. The produced pellets pass through the vibrating sieve and cooling conveyor.
  5. After that, they can be packaged and stored.
  6. The dust generated during the whole process is gathered in the dust collector.

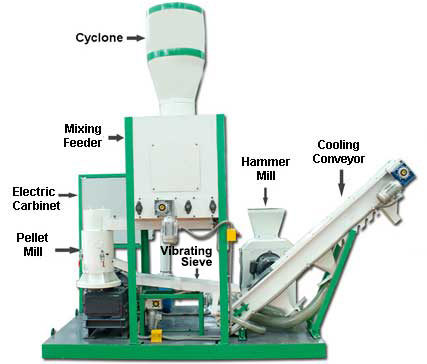

components for complete pellet plant

Advantages of multifunctional integrated wood pellet plant

  • With compact structure, the multifunctional integrated wood pellet plant takes up much smaller room than integrated wood pellet plant, whose overall dimension is 3720×2080×2080. It is convenient for move and transportation. You can load it into the truck of cart without dispatching it.
  • The PLC control system allows high automatic degree. It can relieve your reliance on labors so as to save cost. It is convenient to operate. Just push one button, all component parts can start and stop in right order.
  • The variable-speed feeder allows you to adjust the feeding speed to fit different materials, which ensure the stable performance
  • The screw feed conveyor integrated in the integrated wood pellet plant works stably. You can adjust the delivered quantity with a frequency converter, so that the feeding is enough, and there won’t be too much materials in the hopper. This ensure the pellet making machine works under good condition.
  • To open and shut down the machine sets, you can turn on them manually one by one, or let them start automatically. If there is any accident during their automatic start, an alarm would warn you to take urgent measures.
  • The maximum height of this multifunctional integrated wood pellet plant has been reduced distinctively thank to upgraded structure, which is more convenient for transportation.

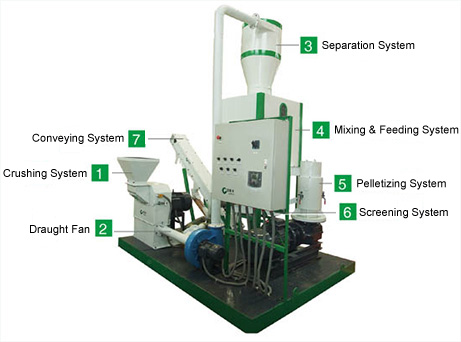

multifunction pellet plant structure

Raw materials and applications

Raw materials for making biomass pellets covers sawdust, branch, crop straw, rice husk, peanut shell, bagasse, bamboo residue, palm shell, and other products. The pellet diameter is from 6 to 12mm, density is 1.1-1.3t/m3, and water content is lower than 8%.
biomass materials

Requirements for raw materials

The diameter should be under 50mm. If your materials are larger than this standard, a hammer mill or wood pulverizer is needed.

The water content should be between 10% and 14%. You need to dampen it if the raw materials are too dry, and dry it if they contains too much moisture.

Biomass pellets applications

Biomass pellets have advantages of small volume, high combustion efficiency, and low pollutant emission. It is easy to store and transport, widely applied for home heating, pellet stove, industrial boiler, electric plant, etc. Owing to low cost and carbon emission, it is an ideal substitute for oil and gas.
