Disc Chipper

Disc chippers can process limbs whose diameter is under 120mm, barks whose width is under 160-180mm, and the scraps from rotary cutter.

Disc chipper are widely used in biomass production plants, pulp mills, paper mills, fibreboard factories, and preparation workshops. It is the first choice to process wood chips.

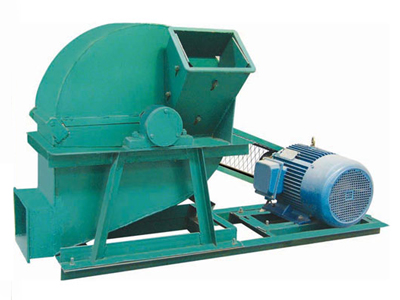

wood disc chipper

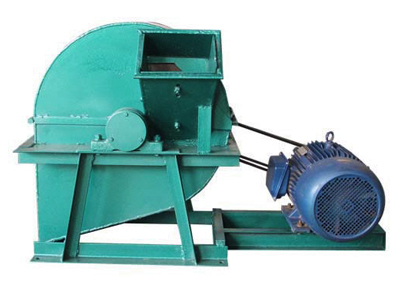

wood disc chipper

Characteristics of disc chipper

TICO disc chippers have compact and proper structure. They feature high capacity, steady performance and high safety. You can operate and maintain it conveniently.

A disc chipper is composed of an engine base, a feed port, a chipper disc, cutters, a cabinet, and an electronic controller. You can adjust the cutters to produce chips of different sizes and thicknesses.

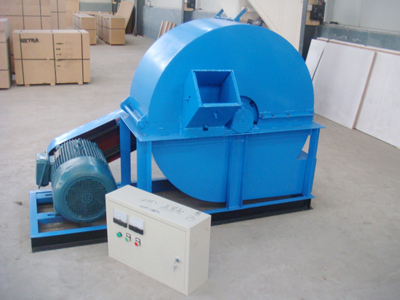

disc chipper
electronic control cabinet
disc chipper
feed port

How does a disc chipper work?

Wood materials are fed through the feed port. When it get to the chipper disc, the cutters spin at high speed and cut it into pieces. The cut wood chips are sent out of the cutting chamber by the high-speed airflow from the fan blades.

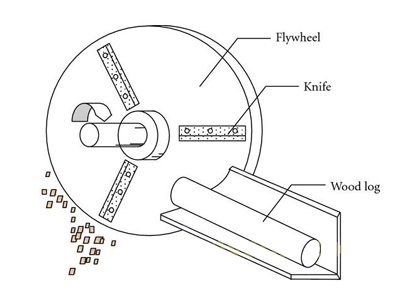

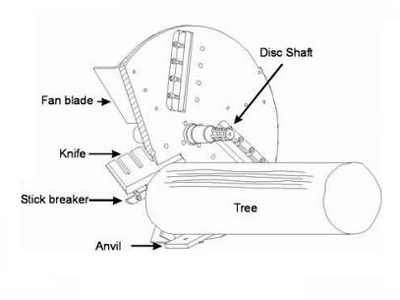

disc chipper working principle
disc chipper working principle
Type Output Capacity (t/h) Motor power (kw) Outline Dimension L*W*H (mm) Weight (kg) Notes
FSDC420B-1 0.6-1 11 1400*600*750 240 You can replace the screen mesh to adjust the size of wood chips. With different raw materials or different production requirement, the production per hour is different.
FSDC420B-2 0.6-1 11 1400*600*750 240
FSDC500B-1 0.8-1.5 18.5 1500*650*850 240
FSDC500B-2 0.8-1.5 18.5 1500*650*850 390
FSDC600B-1 1-2 30 1500*700*1000 620
FSDC600B-2 1-2 30 1500*700*1000 620
