Wood pellet packing machine

Wood pellet packing machine, also known as pellet bagging machine, is used to weigh and pack wood pellets automatically. It can realize quantitative packing for granulate and powdery materials who have good fluidity, such as plastic pellets, rubber particles, fertilizer particles, chemical particles, grains, etc. The packing bags can be made of plastic, woven, kraft, sack, paper-plastic compound.

The automatic packing machine is a common equipment in large and medium sized pellet production line. It can accomplish automatic weighing, packing, conveying and sewing. For large-scale production, e.g. 5t/h or more, you’d better use an automatic wood pellet packing machine to save your labor and time.

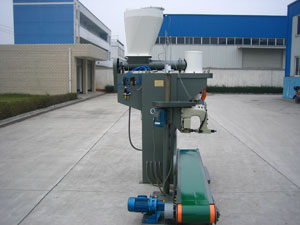

pellet packing machine

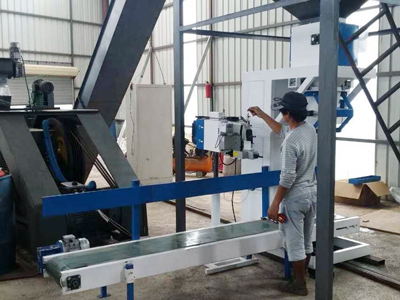

pellet packing machine

Specifications of a wood pellet packing machine

The wood pellet packing machine is composed of a storage bin, weighing system, conveyor, packing system and an intelligent controller.

  • The storage bin serves to take over the materials and store them temporarily.
  • The weighing system can weigh specific quantity of materials.
  • The intelligent controller ensure the packing machine works automatically and accurately.
  • The conveyor serves to transmit the pellet bags from the weighing system to the sewing system. It is 3 meters long.
  • The wood pellet packing machine can pack 200-300 bags per hour. The weight of the bags ranges from 5kg to 50kg.

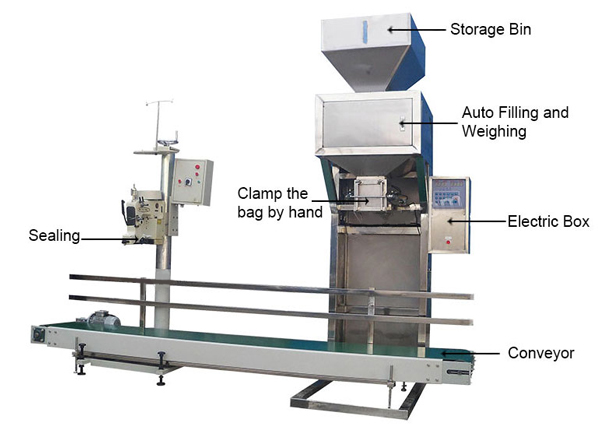

packing machine component
Model DCS-Z-W-50
Components Main scale body, Control system, 3-meter conveyor, sewing machine
Feed type Double speed gravity feed
Clipping way Double cylinder belt cliping
Weighing range 5-50 kg
Weighing accuracy ±0.2%
Weighing speed 200—300 bags/h
Height 222cm
Power consumption 1.0Kw
Compressed air consumption 0.4-0.6Mpa compressed air 1m^3/h
Application scope Granular materials with good fluidity

send inquiry

How does a wood pellet packing machine work

First, you need place the bag to the filling spout manually. Then, press the button to start. The pellet materials will accumulate in the hopper and be fed into the bags through the filling spout. The filling speed is controlled by a frequency converter. When the bag is filled up with pellets, the bag clamping device will open and the bag will be conveyed to the sewing device.

Roughly, the packing process can be divided as the following.

Manual bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sewing → next process

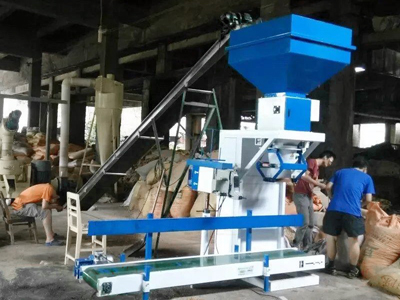

pellet packing machine

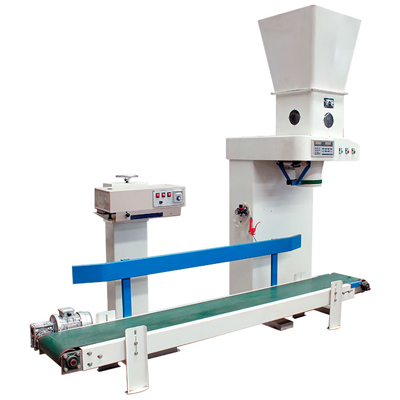

packing machine
packing machine

Performance features of wood pellet packing machine

  • The intelligent meter can realize automatic calibration and allows manual calibration. It can reduce the error caused by long-term use and temperature change.
  • The wood pellet packing machine adopts a user-friendly operation interface. It can be connected with computers for data communication.
  • The integrate circuit ensures high stability and reliability. The high-precision sensor, pneumatic actuator ensures easy maintenance and non-pollution.
  • It adopts a free-dropping filling system. There is a precise valve that ensures the filling process is frequent and stable, with no jam or sticking.
  • The automatic control system can realize parameter setting, weight-drop revise, over-weight warning and auto-diagnosis.
  • The main body is made of carbon steel, painted with plastic. The material contact parts adopt stainless iron, resistant to corrosions.

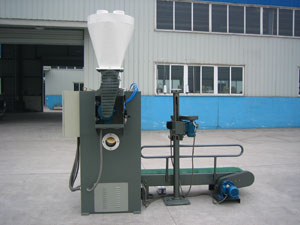

pellet packing machine

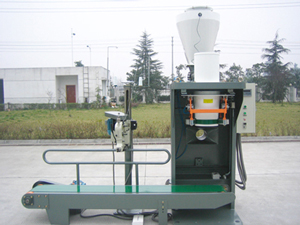

pellet packing machine process
