Electric Pellet Machine 420B

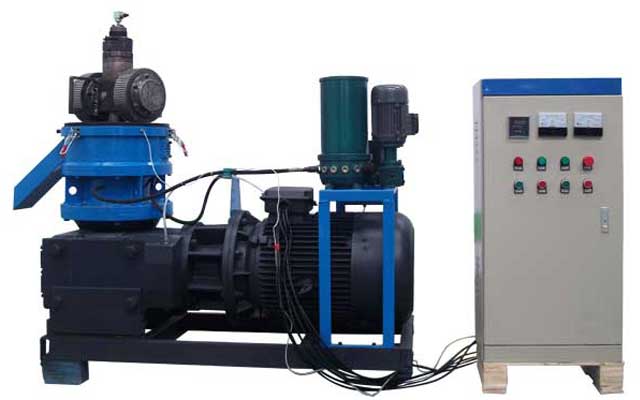

wood pellet mill 420
TICO pellet making machine ZLMG-420B is a high-capacity type. The biomass pellet output is 400-600kg/h. It is designed for clients with high production demand or commercial purpose. The raw materials include sawdust, wood shaving, crop straw, rice huck, grass, alfalfa, peanut shell, etc.

Type Power (KW) Production (kg/h) Pellet size (mm) Weight (kg) Packing size (mm)
ZLMG420B    37 400-600 6、8、10    1100 1630*620*1400

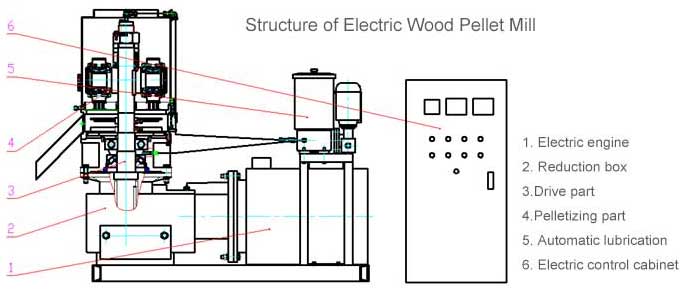

Structure of rotating roller pellet making machine

Pellet making machine 420B adopts rotating roller and stationary flat die structure.The main components are electric motor, reduction gears, transmission gear, pelletizing system (roller and flat die), self-lubrication system, electric control cabinet.

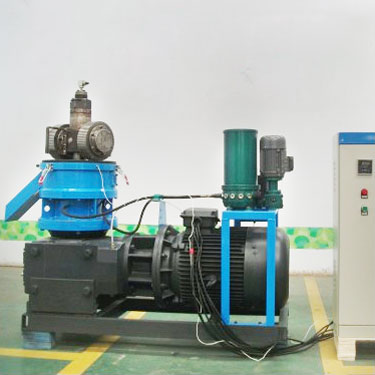

pellet making machine 420b

send inquiry

Operating principle of pellet making machine 420B

When you feed biomass materials into the pellet machine, they are uniformly distributed on the flat die, where the roller rolls on them and squeeze them into small hole on flat die. The strong friction and pressure between the roller and die heat up the materials and make them fully pulverized and cured.

When they are squeezed out from the holes, they become solid cylinders. Under the flat die is a slicer that cuts them into short pellets. You can adjust the position of slicer to achieve different lengths of pellets.

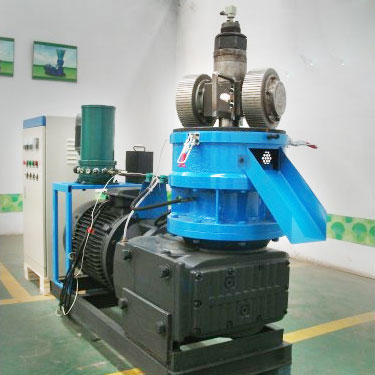

biomass pellet making machine

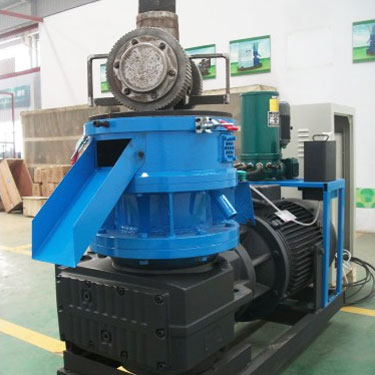

electric pellet making machine
electric pellet making machine
wood pellet making machine

send inquiry

Advantages of TICO 420B biomass pellet making machine

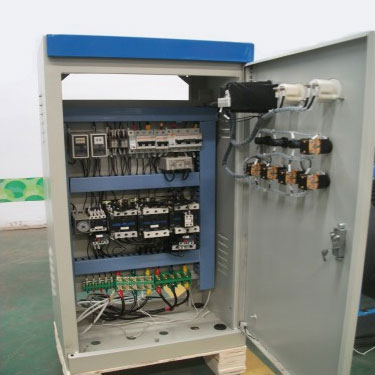

  • The electronic control cabinet is equipped with a voltmeter, ammeter, temperature control panel, and a scram button. The shell is made up of heat-dissipating plates, coated with spraying plastics. The electric control device strictly conforms to CE standard.
  • The reduction gears installed in the pellet machine can rotate toward the opposite side, which can lower operating noise and prolong working life.
  • The temperature sensor allows you to monitor the inside temperature. Meanwhile, there are many heat emission holes on the shell that effectively bring down the temperature.
  • The pelletizing part—roller and flat die is made of superior alloy steel, with high wear resistance. In addition, the bearing can be oiled by itself, which extends its service life.

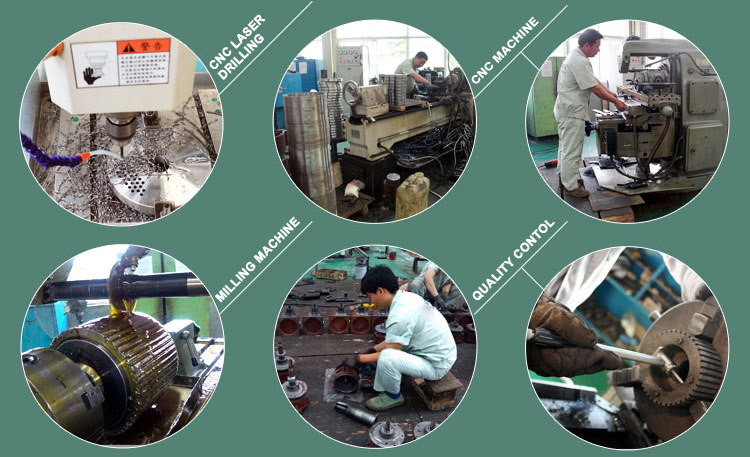

pellet making machine manufacture

How to install biomass pellet making machine 420B

  • Our biomass pellet making machine is directly delivered from factory. With all components well assembled, you can install it directly. For the equipment is so heavy, it requires high-strength lifting belts with enough length. And the machine must be kept horizontal when lifted.
  • The base for installing biomass pellet machine should be flat and steady. You’d better leave some place around the pellet making machine to make it convenient for operation and maintenance.
  • To keep the biomass pellet making machine working under normal condition, users need to adjust the speed of feed conveyor to adapt to the pelletizing speed.
  • TICO ZMLG 420B biomass pellet making machine is equipped with electric control cabinet. To ensure the electric motor rotate at right direction, you must wire according to our instruction book.
